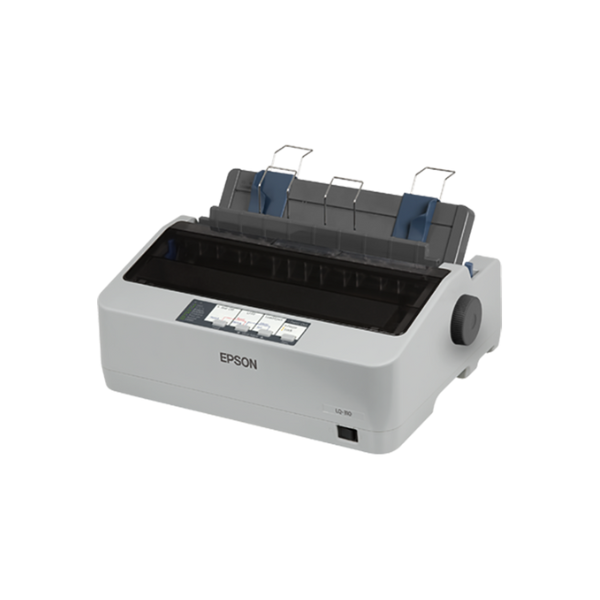

Epson LQ 310 24 Pins Dot Matrix Printer (A4)

$2,238
+ 2,238 mDollar

• 24-pin，80 columns
• Print Speed: 347 cps
• Copy Capability: 1+3 plys
• Print Head Life: 400 million strokes/wire
**USB Printer cable is not included**

SKU: PM-LQ310 Category:
Description
Print Specification
Printing Method Impact dot matrix
Copies Original + 3 Copies
Print Area 10cpi 80 cpi
12cpi 96 cpi
15cpi 120 cpi
17cpi 137 cpi
20cpi 160 cpi
Print Direction Bi-directional with logic seeking
High Speed Draft 10cpi 347 cps 12cpi 416 cps
Draft 10cpi 260 cps
12cpi 312 cps
15cpi 390 cps
17cpi (Condensed) 222 cps
20cpi (Condensed) 260 cps
LQ 10cpi 86 cps
12cpi 103 cps
15cpi 129 cps
17 cpi (Condensed) 147 cps
20 cpi (Condensed) 172 cps
Paper Handling
Paper Size Cut sheet (Single)
Width: 100~257 mm (3.9 ~ 10.1”)
Length: 100~364 mm (3.9 ~ 14.3”)
Thickness: 0.65~0.14mm(0.0025~0.0055”) Total

Cut sheet (Multi Part)
Width: 100~257 mm (3.9 ~ 10.1”)
Length: 100~364 mm (3.9 ~ 14.3”)
Thickness: 0.12~0.32mm(0.0047~0.0126”) Total

Envelope No.6
Width: 165mm (6.5”)
Length: 92mm (3.6”)
Thickness: 0.16~0.52mm(0.0063~0.0205”) Total

Envelope No.10
Width: 241mm (9.5”)
Length: 105mm (4.1”)
Thickness: 0.16~0.52mm(0.0063~0.0205”) Total

Continuous paper
(Single/Multi Part)
Width: 101.6~254 mm (4 ~ 10.0”)
Length: (one page) 101.6~558.8mm (4 ~ 22.0”)
Thickness: 0.065~0.32mm(0.0025~0.0126”) Total

Roll paper
Width: 216mm (8.5”)
Thickness: 0.07~0.09(0.0028~0.0035”)
Line Spacing 4.23mm(1/6”) or programmable in increments of 0.118mm (1/216 inch)
Paper Feeding
Single Sheet Standard Friction, Push Tractor
Print Characteristics
Character Sets 15 international character sets, 13 character code tables (Standard)
BIT Map Fonts EPSON Draft, EPSON Roman, EPSON Sans Serif, EPSON Courier, EPSON Prestige, EPSON Script, EPSON OCR-B, EPSON Orator, EPSON Orator-S, EPSON Script C
Scalable Fonts EPSON Roman, EPSON Sans Serif, EPSON Roman T, EPSON Sans Serif H
Bar code Fonts EAN-13, EAN- 8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39,
Code 128, PostNet,
Interface
Standard Bi-directional parallel interface (IEEE 1284 nibble mode support),
USB (ver 2.0 Full Speed)
Acoustic Noise Approx. 53dB (A)(ISO 7779 pattern)
Control Panel standard ESC/P2, Compatible IBM PPDS
Power Consumption RATED VOLTAGE AC 220V ~ 240V
RATED FREQUENCY 50 ~ 60Hz
POWER CONSUMPTION Approx. 22W (ISO/IEC 10561 letter pattern)
Approx. 1.3W in sleep mode,
Other Specification
Dimensions 362 x 275 x 154mm
Weight 4.1kg
Reliability
MVBF (Mean print volume between failure) 20 million lines (Except print head)
MTBF (Mean time between failure) 10,000 POH (25% Duty cycle)
Print Head Life 400 million strokes/wire
Printer Driver OS
Microsoft® Windows® 2000/XP/Vista®/7
Utility
Epson Status Monitor 3 (Microsoft® Windows® 2000/XP/Vista®/7)
Epson Printing Setting (Microsoft® Windows® 2000/XP/Vista®/7)
Additional information
Brand

Epson
